K21100-04-04

1/4" Braided Crimp x 1/4" FOFX - Hydraulic Hose Fitting - Steel

$4.42
Sold as: Each
Ordered as: K21100-04-04
view spec page

Crossover Part Numbers

Parker Ref.: 1JC43-4-4 / 1JS43-4-4

Specs

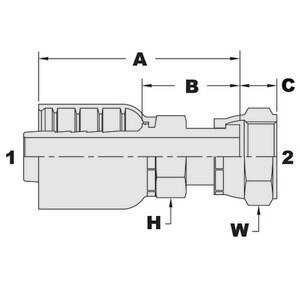

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/4"1 - Thread Type: K2 Hose End
1 - Size: -04 (1/4")2 - Thread Type: Female OFS Swivel2 - Size: -04 (1/4")2 - Thread: 9/16 - 18A - Length: 1.89B - Cut-Off Allowance: 1.10C - Optional Length: 0.32
H - Body Hex: 9/16W - Nut Hex: 11/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
