K26145-12-12

Sold as: Each
Ordered as: K26145-12-12
$29.25
k26145-12-12 spec page

Crossover Part Numbers

Parker Ref.: 11743-12-12

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/4"

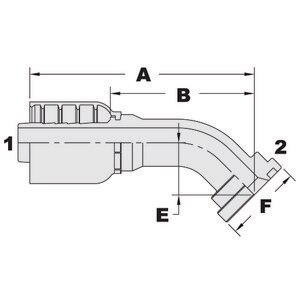

1 - Thread Type: K2 Hose End1 - Size: -12 (3/4")2 - Thread Type: Code 61 Flange Head 45°2 - Size: -12 (3/4")2 - Thread: 3/4”A - Length: 4.57
B - Cut-Off Allowance: 2.99E - Drop Length: 1.14Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
