K46100-24-24

1-1/2" 4-Spiral Wire Crimp x 1-1/2" FH61 - Hydraulic Hose Fitting - Steel

$64.80
Sold as: Each
Ordered as: K46100-24-24
view spec page

Crossover Part Numbers

Parker Ref.: 11571-24-24

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1-1/2"

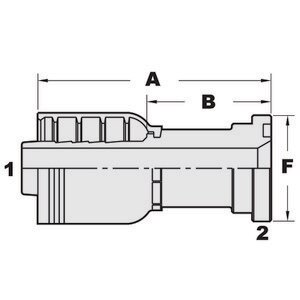

1 - Thread Type: K4 Hose End1 - Size: -24 (1-1/2")2 - Thread Type: Code 61 Flange Head2 - Size: -24 (1-1/2")2 - Thread: 1 1/2"A - Length: 5.16
B - Cut-Off Allowance: 2.83Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
