K46245-12-12

Sold as: Each
Ordered as: K46245-12-12
$33.45

Crossover Part Numbers

Parker Ref.: 16F71-12-12

Specs

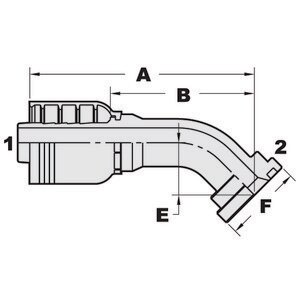

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/4"
1 - Thread Type: K4 Hose End1 - Size: -12 (3/4")2 - Thread Type: Code 62 Flange Head 45°2 - Size: -12 (3/4")2 - Thread: 3/4"A - Length: 4.72
B - Cut-Off Allowance: 3.11E - Drop Length: 1.26Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
