K60100-16-16

1" 6-Spiral Wire (Non-Skive) Crimp x 1" MP - Hydraulic Hose Fitting - Steel

$24.78
Sold as: Each
Ordered as: K60100-16-16
view spec page

Crossover Part Numbers

Parker Ref.: 10178-16-16

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1"

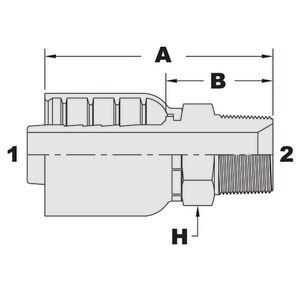

1 - Thread Type: K6 Hose End1 - Size: -16 (1")2 - Thread Type: Male Pipe2 - Size: -16 (1")2 - Thread: 1 - 11 1/2A - Length: 4.13
B - Cut-Off Allowance: 1.69H - Body Hex: 1 7/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
