P101-160-H4-K-P

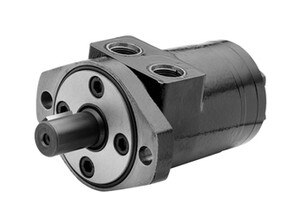

P101 Legend Series™ - LSHT Hydraulic Motor - 4-Bolt - 1" Woodruff - 1/2" NPTF
Details
Details
• P101 Legend Series™ Hydraulic Motor
• Low-Speed High-Torque (LSHT)
• Displacement: 9.51 cu.in.
• Mounting: 4-Bolt • Shaft: 1" Woodruff Key
• Inlet Port: 1/2" NPTF (1/2 - 14 Thread)
• Outlet Port: 1/2" NPTF (1/2 - 14 Thread)
• Maximum Speed (rpm): 383 / 475 Cont./Int.
• Maximum Torque (in.lbs.): 2,673 / 3,275 Cont./Int.
• Maximum Differential (psi): 2,031 / 2,538 Cont./Int.
• Maximum Flow (gpm): 15.85 / 19.82 Cont./Int.
• Weight: 15.15 lbs.
• Ref. CharLynn: 101-1004, 101-1756, 130-1215
