P103-100-H2-K-S

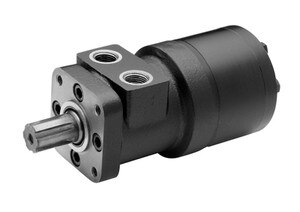

• P103 Legend Series™ Hydraulic Motor
• Low-Speed High-Torque (LSHT)
• Displacement: 6.22 cu.in.
• Mounting: SAE “A” 2-Bolt
• Shaft: 1" Woodruff Key
• Inlet Port: 1/2" NPTF (1/2 - 14 Thread)
• Outlet Port: 1/2" NPTF (1/2 - 14 Thread)

• Maximum Speed (rpm): 600 / 750 Cont./Int.
• Maximum Torque (in.lbs.): 2,124 / 2,478 Cont./Int.
• Maximum Differential (psi): 2,321 / 2,900 Cont./Int.
• Maximum Flow (gpm): 15.85 / 19.81 Cont./Int.
• Weight: 17.35 lbs.

• Ref. CharLynn: 103-1027
