TS62-05-02

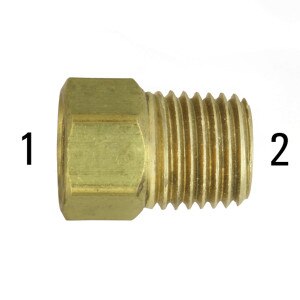

5/16" TS x 1/8" MP - Male Connector - Threaded Sleeve (Double Compression) - Brass
Details
Details
• Threaded Sleeve Male Connector
• TS x MP
• 1st) 5/16" Threaded Sleeve (1/2 - 24 Thread)
• 2nd) 1/8" Male Pipe NPTF (1/8 - 27 Thread)
• Also Called Double Compression
• Solid Machined Brass
• PCC World-Class Quality Process
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• TS x MP
• 1st) 5/16" Threaded Sleeve (1/2 - 24 Thread)
• 2nd) 1/8" Male Pipe NPTF (1/8 - 27 Thread)
• Also Called Double Compression
• Solid Machined Brass
• PCC World-Class Quality Process
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Eaton-Weatherhead: 6200x5
Specs
Fluid Product: ConnectionProduct Type: Threaded Sleeve - Double CompressionMedia: Hydraulic/PneumaticMaterial: BrassOrientation: StraightTube O.D.: 5/16"
1 - Thread Type: Threaded Sleeve1 - Size: -05 (5/16")1 - Thread: 1/2 - 202 - Thread Type: Male Pipe2 - Size: -02 (1/8")2 - Thread: 1/8 - 27
Working PSI: 500Burst PSI: 2,000Working BAR: 34Burst BAR: 138
