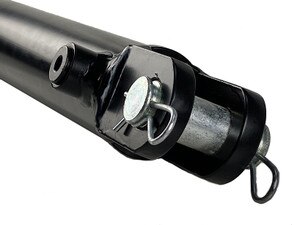

Legend PLUS™ Double-Acting Welded Hydraulic Cylinder - Clevis - 2" Bore x 4" Stroke - 3,000 PSI

Overview: The Legend PLUS™ Double-Acting Welded Hydraulic Cylinder is engineered for durability and efficiency in hydraulic applications. With a clevis mount and rugged welded construction, this cylinder features a 2-inch bore, 4-inch stroke, and #8 SAE O-ring boss ports, delivering consistent performance at 3,000 PSI working pressure.

Key Features

• Legend PLUS™ Series: Designed for maximum performance and reliability in demanding environments.
• Welded Construction: Ensures strength and durability for heavy-duty use.
• Clevis Mount: Provides secure and easy integration into equipment systems.
• High-Pressure Capabilities: Rated for 3,000 PSI working pressure and 12,000 PSI burst pressure.

Specifications

• Fluid Product: Cylinder
• Product Type: Legend PLUS™ Series
• Media: Hydraulic
• Bore: 2 inches
• Stroke: 4 inches
• Rod Diameter: 1-1/4 inches
• Thread: 3/4 - 16 UNF
• Ports: #8 SAE O-ring boss ports
• Extended Length: 18.25 inches
• Retracted Length: 14.25 inches
• Working Pressure: 3,000 PSI / 207 BAR
• Burst Pressure: 12,000 PSI / 828 BAR
• Weight: 13.2 lbs
• Mount: Clevis

Industry Applications

Ideal for use across various industries:

• Agriculture: Used in equipment such as tractors, harvesters, and plows.
• Construction: Suitable for loaders, excavators, and other machinery.
• Material Handling: Designed for forklifts, hoists, and lifting systems.
• Transportation: Perfect for trailers, lift gates, and mobile applications.
• General Equipment: Reliable for industrial machinery, presses, and automation systems.

Why Choose the Legend PLUS™ Hydraulic Cylinder?

With its robust construction, superior pressure handling, and versatile application capabilities, the Legend PLUS™ Hydraulic Cylinder is the perfect solution for equipment manufacturers seeking high-quality, durable hydraulic components.
