1504-16-16-4

Sold as: Each
Ordered as: 1504-16-16-4
$20.64
1504-16-16-4 spec page

Crossover Part Numbers

Eaton-Aeroquip Ref: 2050-16-16SEaton-Weatherhead Ref: 9385x16x16
Parker Ref: 3207-16-16SAE Ref: 140331

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Female Pipe1 - Size: -16 (1")

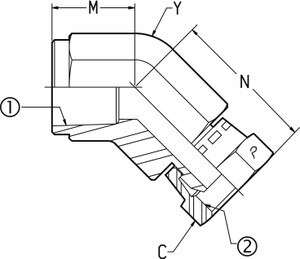

1 - Thread: 1 - 11 1/22 - Thread Type: Female NPSM Swivel2 - Size: -16 (1")2 - Thread: 1 - 11 1/2C - Nut Hex: 1 1/2M - Leg Length: 1.24N - Leg Length: 1.55
Y - Flats: 1 5/8Working PSI: 2,000Burst PSI: 8,000Working BAR: 138Burst BAR: 552
