1704-16-20-4

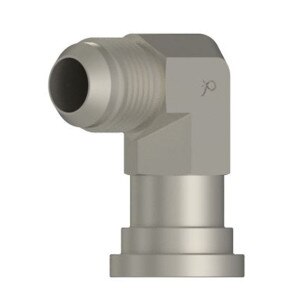

MJ Split Flange Elbow 90° - Code 61 -Stl
Details
Details
• Code 61 - JIC Split Flange Elbow
• MJ x FH61 90°
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1-1/4" Code 61 Flange Head (2" Dia.)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Flange Specifications
• Uses Split Flange Kit # 61SF-KIT-20
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
