2404-24-16

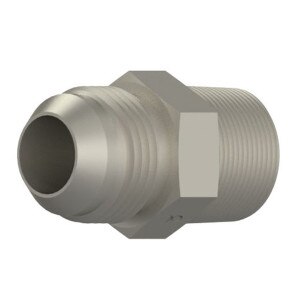

1-1/2" MJ x 1" MP - Male Connector - Steel
Details
Details
• Male Connector
• MJ x MP
• 1st) 1-1/2" Male 37° JIC Flare (1 7/8 - 12 Thread)
• 2nd) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070102
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• MJ x MP
• 1st) 1-1/2" Male 37° JIC Flare (1 7/8 - 12 Thread)
• 2nd) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070102
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2021-16-24SEaton-Weatherhead Ref: C5205x24x16
Parker Ref: 24-16 FTX-SSAE Ref: 070102
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1 1/2"

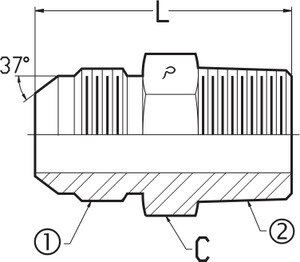

1 - Thread Type: Male JIC1 - Size: -24 (1 1/2")1 - Thread: 1 7/8 - 122 - Thread Type: Male Pipe2 - Size: -16 (1")2 - Thread: 1 - 11 1/2
C - Hex: 2"L - Length: 2.62Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
