2405-08-06

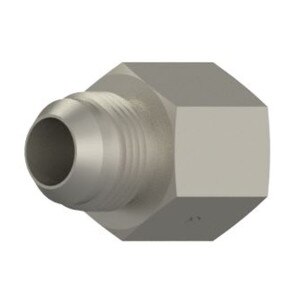

MJ x FP - Female Connector - Steel


$3.51
Sold as: Each
Ordered as: 2405-08-06

Details

Details

• Female Connector
• MJ x FP
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 3/8" Female NPTF Pipe (3/8 - 18 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070103

• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2022-6-8SEaton-Weatherhead Ref: C5255x8
Parker Ref: 8 GTX-SSAE Ref: 070103

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/2"
1 - Thread Type: Male JIC1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Thread Type: Female Pipe2 - Size: -06 (3/8")2 - Thread: 3/8 - 18

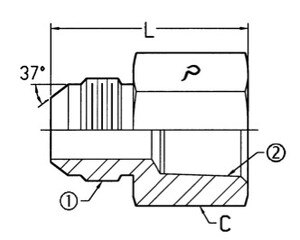

C - Hex: 7/8L - Length: 1.56Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
