2407-08-06
FJ x MJ - JIC Reducer INSERT -Steel
Details
Details

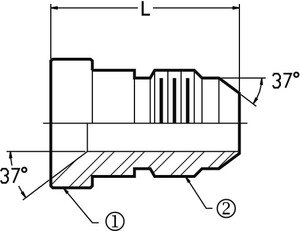

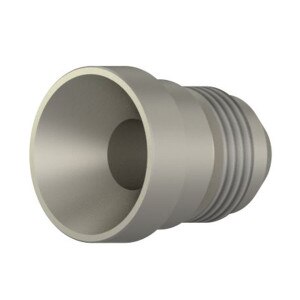

• JIC Tube Reducer INSERT
• FJ x MJ
• 1st) 1/2" Female 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 3/8" Male 37° JIC Flare (9/16 - 18 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070123
• Inserts into a Tube Nut #318-08
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• FJ x MJ
• 1st) 1/2" Female 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 3/8" Male 37° JIC Flare (9/16 - 18 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070123
• Inserts into a Tube Nut #318-08
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
