2504-04-04-4

Sold as: Each
Ordered as: 2504-04-04-4
$2.40

Details

Details

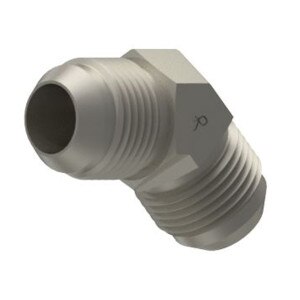

• Union Elbow
• MJ x MJ 45°
• 1st) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• 2nd) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified

• Working Pressure 7,500 PSI (4:1 Burst)
• Burst Pressure 30,000 PSI

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1/4"1 - Thread Type: Male JIC
1 - Size: -04 (1/4")1 - Thread: 7/16 - 202 - Thread Type: Male JIC2 - Size: -04 (1/4")2 - Thread: 7/16 - 20M - Leg Length: 0.72M1 - Leg Length: 0.72
Y - Flats: 7/16Working PSI: 7,500Burst PSI: 30,000Working BAR: 517Burst BAR: 2,068
