2703-03-03-03-4

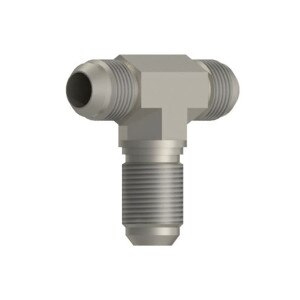

3/16" MJ x 3/16" MJ x 3/16" BH MJ - Bulkhead Branch Tee - Steel
Details
Details
• Bulkhead Branch Tee
• MJ x MJ x BH MJ
• 1st) 3/16" Male 37° JIC Flare (3/8 - 24 Thread)
• 2nd) 3/16" Male 37° JIC Flare (3/8 - 24 Thread)
• 3rd) 3/16" Bulkhead Male 37° JIC Flare (3/8 - 24 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070959
• Uses Bulkhead Locknut # 306-03
• Working Pressure 7,500 PSI (4:1 Burst)
• Burst Pressure 30,000 PSI
• MJ x MJ x BH MJ
• 1st) 3/16" Male 37° JIC Flare (3/8 - 24 Thread)
• 2nd) 3/16" Male 37° JIC Flare (3/8 - 24 Thread)
• 3rd) 3/16" Bulkhead Male 37° JIC Flare (3/8 - 24 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070959
• Uses Bulkhead Locknut # 306-03
• Working Pressure 7,500 PSI (4:1 Burst)
• Burst Pressure 30,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 203002-3-3SEaton-Weatherhead Ref: C5725x3
Parker Ref: 3 WJTX-SSAE Ref: 070959
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 3/16"1 - Thread Type: Male JIC1 - Size: -03 (3/16")1 - Thread: 3/8 - 24
2 - Thread Type: Male JIC2 - Size: -03 (3/16")2 - Thread: 3/8 - 243 - Thread Type: Bulkhead Male JIC3 - Size: -03 (3/16")3 - Thread: 3/8 - 24I - Assembled: 0.92K - Thickness: 0.09M - Leg Length: 0.94
M1 - Leg Length: 1.50W - Diameter: 0.38Y - Flats: 7/16Working PSI: 7,500Burst PSI: 30,000Working BAR: 517Burst BAR: 2,068
