282-04-04

Sold as: Each
Ordered as: 282-04-04
$3.69

Details

Details

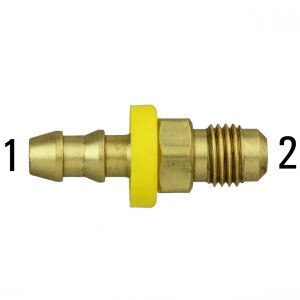

• Push-Lock Hose Barb - Male 45° SAE Flare
• HS x MS
• 1st) 1/4" Hose Barb
• 2nd) 1/4" Male 45° SAE Flare (7/16 - 20 Thread)
• Brass with a "Yellow" Collar (Hose Stop)
• Reusable: No Clamp or Ferrule Required
• Application: Use Only Push-Lock Hose
• PCC World-Class Quality Process

• Pressure Rating: Hose Dependant
• Temperature Range: Hose Dependant

Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).

Crossover Part Numbers

Eaton-Weatherhead: 10004B-304
Parker: 30482-4-4B

Specs

Fluid Product: ConnectionProduct Type: Push-Lock Hose BarbsMedia: Hydraulic/PneumaticMaterial: Brass
Orientation: StraightTube O.D.: 1/4"1 - Thread Type: Push-Lock Barb1 - Size: -04 (1/4")
1 - Thread: 0.250" O.D.2 - Thread Type: Male SAE2 - Size: -04 (1/4")2 - Thread: 7/16 - 20
