6502-20-20-4

Sold as: Each
Ordered as: 6502-20-20-4
$24.48

Details

Details

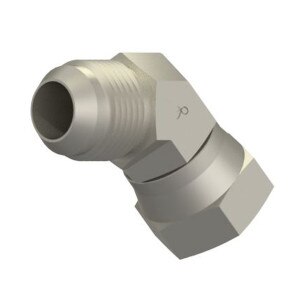

• Swivel Nut Elbow
• MJ x FJX 45°
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070321

• Working Pressure 3,600 PSI (4:1 Burst)
• Burst Pressure 14,400 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2070-20-20SEaton-Weatherhead Ref: C5356x20
Parker Ref: 20 V6X-SSAE Ref: 070321

Specs

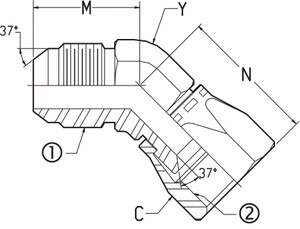

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 1 1/4"1 - Thread Type: Male JIC
1 - Size: -20 (1 1/4")1 - Thread: 1 5/8 - 122 - Thread Type: Female JIC Swivel2 - Size: -20 (1 1/4")2 - Thread: 1 5/8 - 12C - Nut Hex: 2"M - Leg Length: 1.59
N - Leg Length: 2.03Y - Flats: 1 5/8Working PSI: 3,600Burst PSI: 14,400Working BAR: 248Burst BAR: 993
