4503-20-20

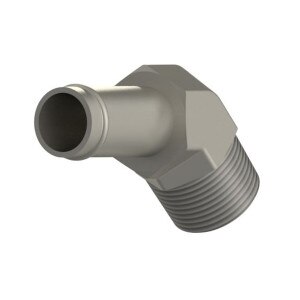

1-1/4" Hose Barb x 1-1/4" MP 45° - Beaded Hose Barb - Steel
Details
Details
• Male Pipe x Beaded Hose Barb Elbow
• HS x MP 45°
• 1st) 1-1/4" Beaded Hose Barb
• 2nd) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE 430360
• HS x MP 45°
• 1st) 1-1/4" Beaded Hose Barb
• 2nd) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE 430360
Specs
Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 1-1/4"1 - Thread Type: Beaded barb
1 - Size: 1.252 - Thread Type: NPTF2 - Size: 1 1/42 - Thread: 1 1/4- 11 1/2A - Length: 2.10E - Drop Length: 1.75M - Leg Length: 2.10 in
N - Leg Length: 1.75 inY - Flats: 1 5/8Y - Wrench Flats: 1 5/8Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
