4806-20-20

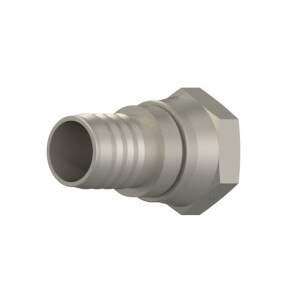

1-1/4" Hose Barb x 1-1/4" FJX - Suction Hose Barb - Steel
Details
Details
• Female JIC Swivel x Suction Hose Barb
• HS x FJX
• 1st) 1-1/4" Suction Hose Barb
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Equivalent to Parker # 0688
• HS x FJX
• 1st) 1-1/4" Suction Hose Barb
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Equivalent to Parker # 0688
Crossover Part Numbers
Parker Ref.: 0688-20-20
Specs
Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1-1/4"
1 - Thread Type: R4 Hose Barb1 - Size: -20 (1-1/4")2 - Thread Type: Suction Hose Barb x Female JIC Swivel2 - Size: -20 (1-1/4")2 - Thread: 1 5/8 - 12A - Length: 3.44
W - Nut Hex: 2"Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
