5404-24-24

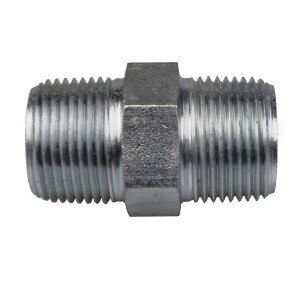

1-1/2" MP x 1-1/2" MP - Hex Pipe Nipple - Steel
Details
Details
• Hex Pipe Nipple
• MP x MP
• 1st) 1-1/2" Male NPTF Pipe (1 1/2 - 11 1/2 Thread)
• 2nd) 1-1/2" Male NPTF Pipe (1 1/2 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140137
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• MP x MP
• 1st) 1-1/2" Male NPTF Pipe (1 1/2 - 11 1/2 Thread)
• 2nd) 1-1/2" Male NPTF Pipe (1 1/2 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140137
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2083-23-24SEaton-Weatherhead Ref: C3069x24
Parker Ref: 1 1/2 FF-SSAE Ref: 140137
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male Pipe
1 - Size: -24 (1 1/2")1 - Thread: 1 1/2 - 11 1/22 - Thread Type: Male Pipe2 - Size: -24 (1 1/2")2 - Thread: 1 1/2 - 11 1/2C - Hex: 2"
L - Length: 2.61Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
