5602-06-06-06-4

Sold as: Each
Ordered as: 5602-06-06-06-4
$6.48

Details

Details

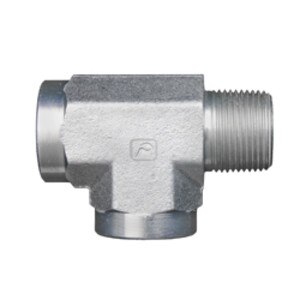

• Street Tee
• MP x FP x FP
• 1st) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• 2nd) 3/8" Female NPTF Pipe (3/8 - 18 Thread)
• 3rd) 3/8" Female NPTF Pipe (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140424

• Working Pressure 4,500 PSI (4:1 Burst)
• Burst Pressure 18,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2092-6-6SEaton-Weatherhead Ref: C3759x6
Parker Ref: 3/8 MRO-SSAE Ref: 140424

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Tee1 - Thread Type: Male Pipe1 - Size: -06 (3/8")
1 - Thread: 3/8 - 182 - Thread Type: Female Pipe2 - Size: -06 (3/8")2 - Thread: 3/8 - 183 - Thread Type: Female Pipe3 - Size: -06 (3/8")3 - Thread: 3/8 - 18

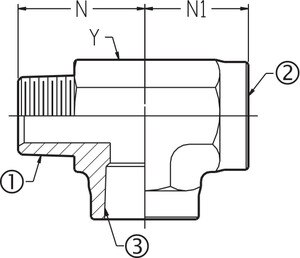

N - Leg Length: 1.22N1 - Leg Length: 1.02Y - Flats: 7/8Working PSI: 4,500Burst PSI: 18,000Working BAR: 310Burst BAR: 1,241
