5604-02-02-02-4

Sold as: Each
Ordered as: 5604-02-02-02-4
$4.89

Details

Details

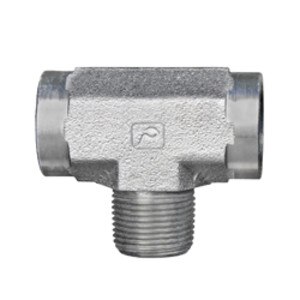

• Male Pipe Branch Tee
• FP x FP x MP
• 1st) 1/8" Female NPTF Pipe (1/8 - 27 Thread)
• 2nd) 1/8" Female NPTF Pipe (1/8 - 27 Thread)
• 3rd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140425

• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2091-2-2SEaton-Weatherhead Ref: C3609x2
Parker Ref: 1/8 MMS-SSAE Ref: 140425

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Tee1 - Thread Type: Female Pipe1 - Size: -02 (1/8")
1 - Thread: 1/8 - 272 - Thread Type: Female Pipe2 - Size: -02 (1/8")2 - Thread: 1/8 - 273 - Thread Type: Male Pipe3 - Size: -02 (1/8")3 - Thread: 1/8 - 27

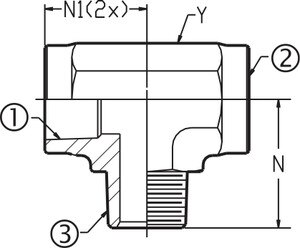

N - Leg Length: 0.78N1 - Leg Length: 0.66Y - Flats: 9/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
