6400L-16-16

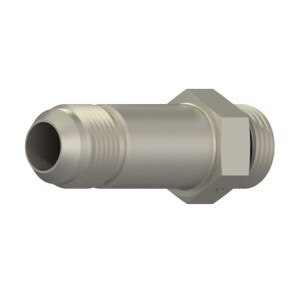

1" MJ x 1" MB - Straight Thread Connector Long - Steel
Details
Details
• Straight Thread Connector LONG
• MJ x MB LONG
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 071720
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MJ x MB LONG
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 071720
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 202713-16-16SEaton-Weatherhead Ref: C5316x16
Parker Ref: 16 FF5OX-SSAE Ref: 070122
Specs

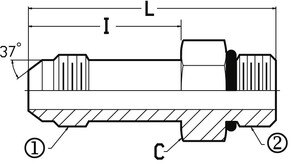

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1"1 - Thread Type: Male JIC
1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Thread Type: Male ORB2 - Size: -16 (1")2 - Thread: 1 5/16 - 12C - Hex: 1 1/2I - Assembled: 2.84
L - Length: 3.98Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
