6405-16-20
Details
Details

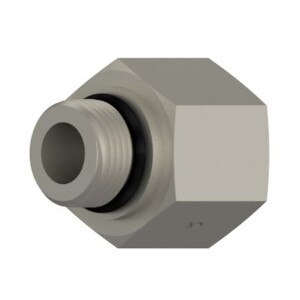

• Male O-Ring Boss x Female Pipe Adapter
• MB x FP
• 1st) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1-1/4" Female NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
• MB x FP
• 1st) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1-1/4" Female NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2216-20-16SEaton-Weatherhead Ref: C3269x16x20
Parker Ref: 16-1 1/4 F5OG-S

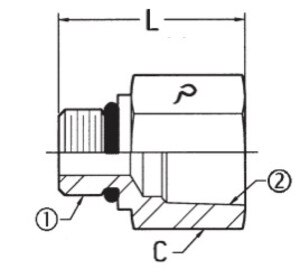

Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male ORB
1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Thread Type: Female Pipe2 - Size: -20 (1 1/4")2 - Thread: 1 1/4 - 11 1/2C - Hex: 2"
L - Length: 2.15Working PSI: 2,500Burst PSI: 10,000Working BAR: 172Burst BAR: 689
