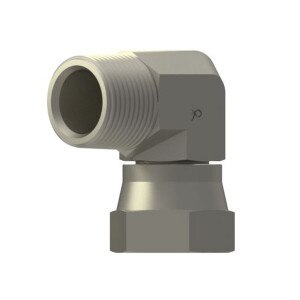

6501-04-06-4
1/4" MP x 3/8" FJX 90° - Steel
Details
Details
• Swivel Nut Male Elbow
• MP x FJX 90°
• 1st) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• 2nd) 3/8" Female JIC Swivel (9/16 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MP x FJX 90°
• 1st) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• 2nd) 3/8" Female JIC Swivel (9/16 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2250-4-6SEaton-Weatherhead Ref: C5406x6x4
Parker Ref: 6 X6EF-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/8"1 - Thread Type: Male Pipe
1 - Size: -04 (1/4")1 - Thread: 1/4 - 182 - Thread Type: Female JIC Swivel2 - Size: -06 (3/8")2 - Thread: 9/16 - 18C - Nut Hex: 11/16M - Leg Length: 1.06
N - Leg Length: 1.27Y - Flats: 9/16Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
