6503-04-04-4

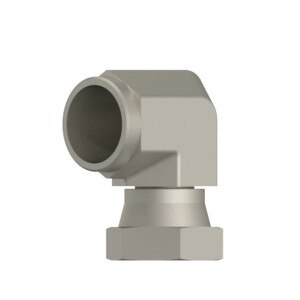

1/4" FP x 1/4" FJX 90° - Swivel Nut Female Elbow - Steel
Details
Details
• Swivel Nut Female Elbow
• FP x FJX 90°
• 1st) 1/4" Female NPTF Pipe (1/4 - 18 Thread)
• 2nd) 1/4" Female JIC Swivel (7/16 - 20 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• FP x FJX 90°
• 1st) 1/4" Female NPTF Pipe (1/4 - 18 Thread)
• 2nd) 1/4" Female JIC Swivel (7/16 - 20 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2244-4-4S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1/4"1 - Thread Type: Female Pipe

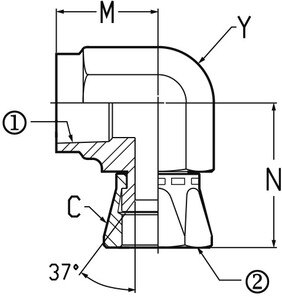

1 - Size: -04 (1/4")1 - Thread: 1/4 - 182 - Thread Type: Female JIC Swivel2 - Size: -04 (1/4")2 - Thread: 7/16 - 20C - Nut Hex: 9/16M - Leg Length: 0.88
N - Leg Length: 1.18Y - Flats: 3/4Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
