6565-16-16

Sold as: Each
Ordered as: 6565-16-16
$14.73

Details

Details

• Swivel Nut Union
• FJX x FJX
• 1st) 1" Female JIC Swivel (1 5/16 - 12 Thread)
• 2nd) 1" Female JIC Swivel (1 5/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified

• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI

Crossover Part Numbers

Parker Ref: 16 H6X-S

Specs

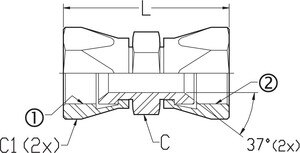

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1"1 - Thread Type: Female JIC Swivel
1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Thread Type: Female JIC Swivel2 - Size: -16 (1")2 - Thread: 1 5/16 - 12C - Body Hex: 1 1/2C1 - Nut Hex: 1 1/2
L - Length: 2.74Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
