6602-20-20-20-4

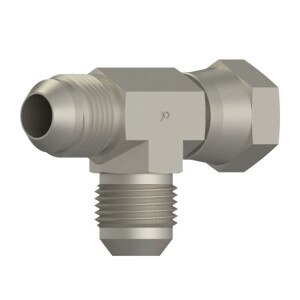

1-1/4" MJ x 1-1/4" FJX x 1-1/4" MJ - Swivel Nut Run Tee - Steel
Details
Details
• Swivel Run Tee
• MJ x FJX x MJ
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• 3rd) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070432
• Working Pressure 3,600 PSI (4:1 Burst)
• Burst Pressure 14,400 PSI
• MJ x FJX x MJ
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• 3rd) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070432
• Working Pressure 3,600 PSI (4:1 Burst)
• Burst Pressure 14,400 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 203102-20-20SEaton-Weatherhead Ref: C5706x20
Parker Ref: 20 R6X-SSAE Ref: 070432
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1 1/4"1 - Thread Type: Male JIC1 - Size: -20 (1 1/4")

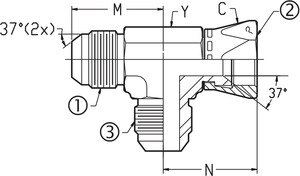

1 - Thread: 1 5/8 - 122 - Thread Type: Female JIC Swivel2 - Size: -20 (1 1/4")2 - Thread: 1 5/8 - 123 - Thread Type: Male JIC3 - Size: -20 (1 1/4")3 - Thread: 1 5/8 - 12C - Nut Hex: 2"
M - Leg Length: 2.06N - Leg Length: 2.31Y - Flats: 1 5/8Working PSI: 3,600Burst PSI: 14,400Working BAR: 248Burst BAR: 993
