6801L-16-16-4

Sold as: Each
Ordered as: 6801L-16-16-4
$36.00

Details

Details

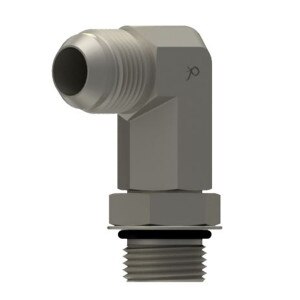

• Straight Thread Elbow LONG
• MJ x MB 90° LONG
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070620

• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: FF3910-16-16S
Eaton-Weatherhead Ref: C5515Lx16

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1"1 - Thread Type: Male JIC

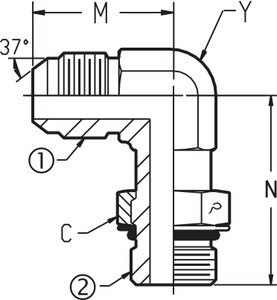

1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Thread Type: Male ORB2 - Size: -16 (1")2 - Thread: 1 5/16 - 12C - Nut Hex: 1 1/2M - Leg Length: 1.81
N - Leg Length: 3.06Y - Flats: 1 5/16Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
