6803-12-12-12-4

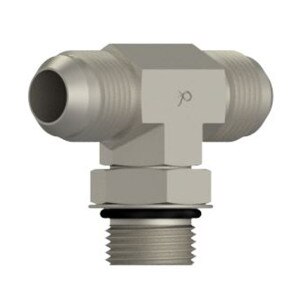

3/4" MJ x 3/4" MJ x 3/4" MB - Straight Thread Branch Tee - Steel
Details
Details
• Straight Thread Branch Tee
• MJ x MJ x MB
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 3rd) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070429
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MJ x MJ x MB
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 3rd) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070429
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 203003-12-12SEaton-Weatherhead Ref: C5715x12
Parker Ref: 12 S5OX-SSAE Ref: 070429
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 3/4"1 - Thread Type: Male JIC1 - Size: -12 (3/4")
1 - Thread: 1 1/16 - 122 - Thread Type: Male JIC2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 123 - Thread Type: Male ORB3 - Size: -12 (3/4")3 - Thread: 1 1/16 - 12C - Nut Hex: 1 1/4
M - Leg Length: 1.66N - Leg Length: 1.94Y - Flats: 1 1/16Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
