6805-12-12-4

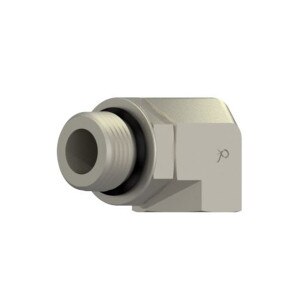

3/4" MB x 3/4" FP 90° - ORB Female Elbow - Steel
Details
Details
• O-Ring Boss Female Elbow
• MB x FP 90°
• 1st) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• 2nd) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• MB x FP 90°
• 1st) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• 2nd) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 206801-12-12SEaton-Weatherhead Ref: C3459x12
Parker Ref: 12-3/4 AOEG-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Male ORB1 - Size: -12 (3/4")

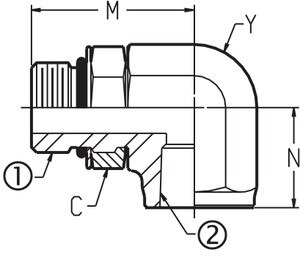

1 - Thread: 1 1/16 - 122 - Thread Type: Female Pipe2 - Size: -12 (3/4")2 - Thread: 3/4 - 14C - Nut Hex: 1 1/4M - Leg Length: 2.00N - Leg Length: 0.81
Y - Flats: 1 5/16Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
