6807-20-20-4

Sold as: Each
Ordered as: 6807-20-20-4
$39.42

Details

Details

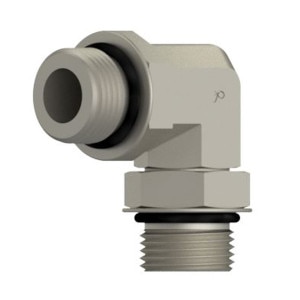

• Male O-Ring Boss Union Elbow
• MB x MB 90°
• 1st) 1-1/4" Male O-Ring Boss (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Male O-Ring Boss (1 5/8 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified

• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI

Specs

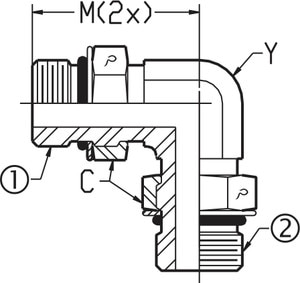

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Male ORB
1 - Size: -20 (1 1/4")1 - Thread: 1 5/8 - 122 - Thread Type: Male ORB2 - Size: -20 (1 1/4")2 - Thread: 1 5/8 - 12C - Nut Hex: 1 7/8
M - Leg Length: 2.25Y - Flats: 1 5/8Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
