6815-06-06-4

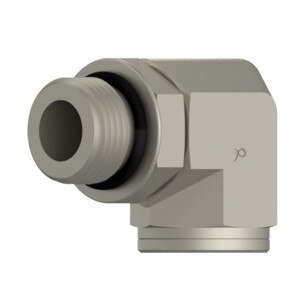

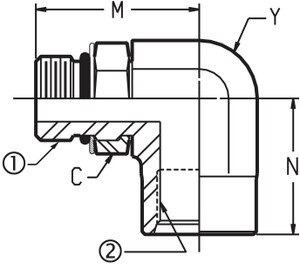

3/8" MB x 3/8" FB 90° -Straight Thread Female Elbow - Steel
Details
Details
• Straight Thread Female Elbow
• MB x FB 90°
• 1st) 3/8" Male O-Ring Boss (9/16 - 18 Thread))
• 2nd) 3/8" Female O-Ring Boss (9/16 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MB x FB 90°
• 1st) 3/8" Male O-Ring Boss (9/16 - 18 Thread))
• 2nd) 3/8" Female O-Ring Boss (9/16 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
