6901-16-16-4

Sold as: Each
Ordered as: 6901-16-16-4
$14.97

Details

Details

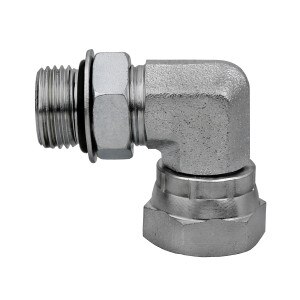

• ORB x NPSM Elbow
• MB x FPX 90°
• 1st) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1" NPSM Female Pipe Swivel (1 - 11 1/2 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140257

• Working Pressure 2,000 PSI (4:1 Burst)
• Burst Pressure 8,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2068-16-16SEaton-Weatherhead Ref: 9515x16x16
Parker Ref: 2507-16-16SAE Ref: 140257

Specs

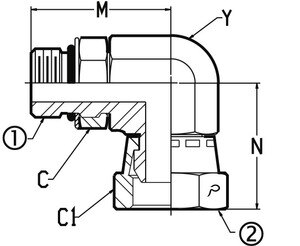

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Male ORB1 - Size: -16 (1")
1 - Thread: 1 5/16 - 122 - Thread Type: Female NPSM Swivel2 - Size: -16 (1")2 - Thread: 1 - 11 1/2C - Nut Hex: 1 1/2C1 - Nut Hex: 1 1/2M - Leg Length: 2.08
N - Leg Length: 1.86Y - Flats: 1 5/16Working PSI: 2,000Burst PSI: 8,000Working BAR: 138Burst BAR: 552
