6902-06-04-4

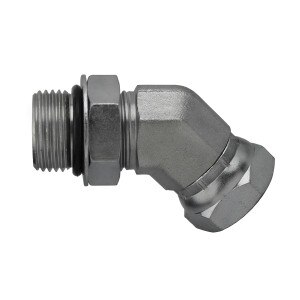

MB x FPX 45° - NPSM Elbow - Steel
Details
Details
• ORB x NPSM Elbow
• MB x FPX 45°
• 1st) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• 2nd) 1/4" NPSM Female Pipe Swivel (1/4 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140357
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MB x FPX 45°
• 1st) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• 2nd) 1/4" NPSM Female Pipe Swivel (1/4 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140357
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
