Sold as: Each
Ordered as: 84-05

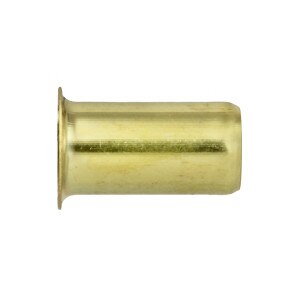

• Compression Tube Support
• CP
• 1st) 5/16" Compression
• Slips Inside of the Tubing for Extra Support
• Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process

• Working Pressure: 300 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)

Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).

Crossover Part Numbers

Eaton-Weatherhead: 2030x5
Parker: 63PT-5


Fluid Product: ConnectionProduct Type: Compression FittingsMedia: Hydraulic/PneumaticMaterial: Brass
Orientation: StraightTube O.D.: 5/16"1 - Thread Type: Size1 - Size: -05 (5/16")
Working PSI: 300Burst PSI: 1,200Working BAR: 21Burst BAR: 83
