FS-2500-12-12-4

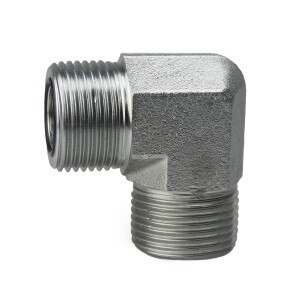

OFS x OFS 90° - OFS Union Elbow - Steel
Details
Details
• OFS Union Elbow
• OFS x OFS 90°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520201
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x OFS 90°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520201
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
