FS-2603-08-08-08-4

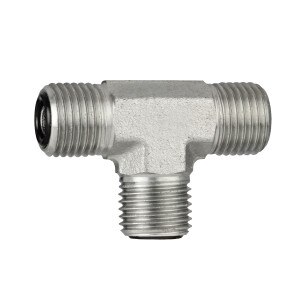

1/2" OFS x 1/2" OFS x 1/2" OFS - OFS Union Tee - Steel
Details
Details
• OFS Union Tee
• OFS x OFS x OFS
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 3rd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520401
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
• OFS x OFS x OFS
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 3rd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520401
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2898T0808SEaton-Weatherhead Ref: 4705x8
Parker Ref: 8 JL0-SSAE Ref: 520401
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1/2"1 - Thread Type: Male OFS
1 - Size: -08 (1/2")1 - Thread: 13/16 - 162 - Thread Type: Male OFS2 - Size: -08 (1/2")2 - Thread: 13/16 - 163 - Thread Type: Male OFS3 - Size: -08 (1/2")

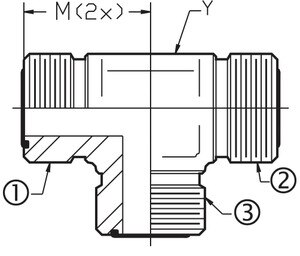

3 - Thread: 13/16 - 16M - Leg Length: 1.10Y - Flats: 3/4Working PSI: 9,200Burst PSI: 36,800Working BAR: 634Burst BAR: 2,537
