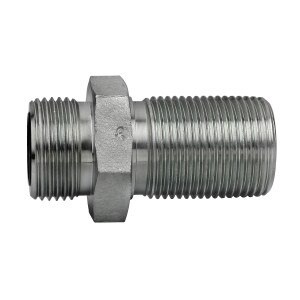

FS-2700-10-10
5/8" OFS x 5/8" BH OFS - OFS Bulkhead Union - Steel
Details
Details
• OFS Bulkhead Union
• OFS x BH OFS
• 1st) 5/8" Male O-Ring Face Seal (1 - 14 Thread)
• 2nd) 5/8" Male Bulkhead OFS (1 - 14 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520601
• Uses OFS Bulkhead Locknut # FS-306-10
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x BH OFS
• 1st) 5/8" Male O-Ring Face Seal (1 - 14 Thread)
• 2nd) 5/8" Male Bulkhead OFS (1 - 14 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520601
• Uses OFS Bulkhead Locknut # FS-306-10
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF1994T1010SEaton-Weatherhead Ref: 4325x10
Parker Ref: 10 WLO-SSAE Ref: 520601
Specs

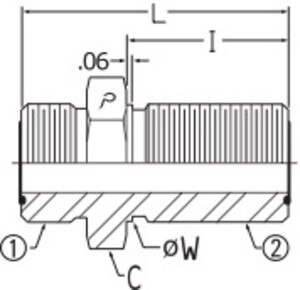

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 5/8"1 - Thread Type: Male OFS
1 - Size: -10 (5/8")1 - Thread: 1 - 142 - Thread Type: Male OFS2 - Size: -10 (5/8")2 - Thread: 1 - 14C - Hex: 1 5/16I - Assembled: 1.60
L - Length: 2.62W - Diameter: 1.00Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
