FS-6500-20-20-4

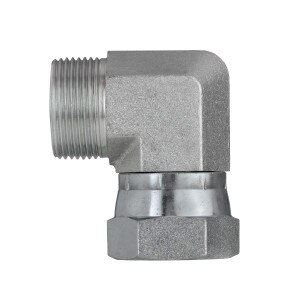

1-1/4" OFS x 1-1/4" FOFX 90° - OFS Swivel Nut Elbow - Steel
Details
Details
• OFS Swivel Nut Elbow
• OFS x FOFX 90°
• 1st) 1-1/4" Male O-Ring Face Seal (1 11/16 - 12 Thread)
• 2nd) 1-1/4" Female OFS Swivel (1 11/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520221
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• OFS x FOFX 90°
• 1st) 1-1/4" Male O-Ring Face Seal (1 11/16 - 12 Thread)
• 2nd) 1-1/4" Female OFS Swivel (1 11/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520221
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2098T2020SEaton-Weatherhead Ref: 4506x20
Parker Ref: 20 C6LO-SSAE Ref: 520221
Specs

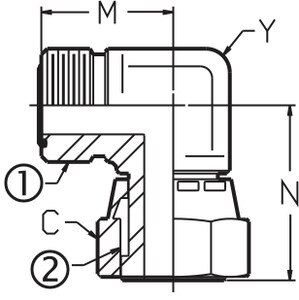

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1 1/4"1 - Thread Type: Male OFS
1 - Size: -20 (1 1/4")1 - Thread: 1 11/16 - 122 - Thread Type: Female OFS Swivel2 - Size: -20 (1 1/4")2 - Thread: 1 11/16 - 12C - Nut Hex: 1 7/8M - Leg Length: 1.75
N - Leg Length: 2.28Y - Flats: 1 5/8Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
