FS-6502-12-12-4

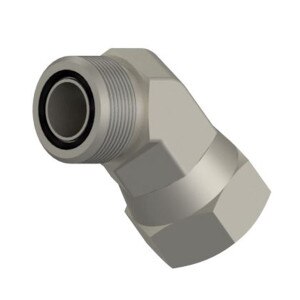

OFS x FOFX 45° - OFS Swivel Nut Elbow
Details
Details
• OFS Swivel Nut Elbow
• OFS x FOFX 45°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Female OFS Swivel (1 3/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x FOFX 45°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Female OFS Swivel (1 3/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2133T1212S
Parker Ref: 12 V6LO-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/4"1 - Thread Type: Male OFS
1 - Size: -12 (3/4")1 - Thread: 1 3/16 - 122 - Thread Type: Female OFS Swivel2 - Size: -12 (3/4")2 - Thread: 1 3/16 - 12C - Nut Hex: 1 3/8M - Leg Length: 1.02
N - Leg Length: 1.73Y - Flats: 1 3/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
