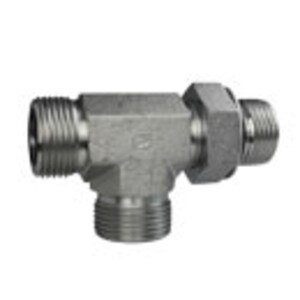

FS-6804-12-12-12-4
3/4" OFS x 3/4" MB x 3/4" OFS - OFS Straight Thread Run Tee - Steel
Details
Details
• OFS Straight Thread Run Tee
• OFS x MB x OFS
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• 3rd) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520428
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x MB x OFS
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• 3rd) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520428
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF1865T1212SEaton-Weatherhead Ref: 4716x12
Parker Ref: 12 R5OLO-SSAE Ref: 520428
Specs

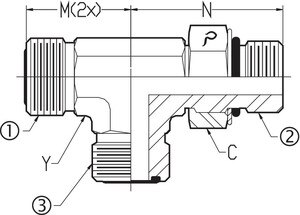

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 3/4"1 - Thread Type: Male OFS1 - Size: -12 (3/4")
1 - Thread: 1 3/16 - 122 - Thread Type: Male ORB2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 123 - Thread Type: Male OFS3 - Size: -12 (3/4")3 - Thread: 1 3/16 - 12C - Nut Hex: 1 3/8
M - Leg Length: 1.47N - Leg Length: 2.17Y - Flats: 1 3/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
