FS-6809-06-06-4

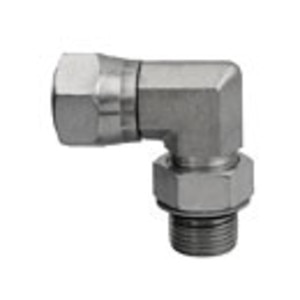

3/8" FOFX x 3/8" MB 90° - OFS Swivel Nut Elbow - Steel
Details
Details
• OFS Swivel Nut Elbow
• FOFX x MB 90°
• 1st) 3/8" Female OFS Swivel (11/16 - 16 Thread)
• 2nd) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520281
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• FOFX x MB 90°
• 1st) 3/8" Female OFS Swivel (11/16 - 16 Thread)
• 2nd) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520281
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Weatherhead Ref: 4535x6
Specs

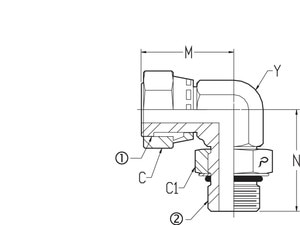

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/8"1 - Thread Type: Female OFS Swivel
1 - Size: -06 (3/8")1 - Thread: 11/16 - 162 - Thread Type: Male ORB2 - Size: -06 (3/8")2 - Thread: 9/16 - 18C - Nut Hex: 13/16C1 - Nut Hex: 3/4
M - Leg Length: 1.15N - Leg Length: 1.45Y - Flats: 3/4Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
