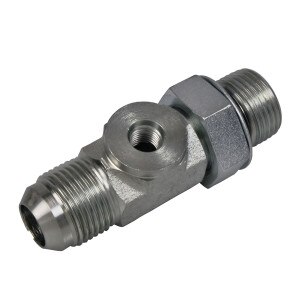

GP-6400-10-10-4

• GagePort Series - Male JIC x Male O-Ring Boss

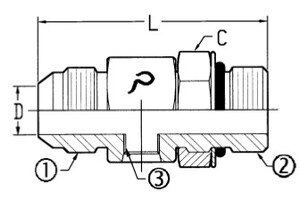

• MJ x MB x FB Port
• 1st) 5/8" Male 37° JIC Flare (7/8 - 14 Thread)
• 2nd) 5/8" Male O-Ring Boss (7/8 - 14 Thread)
• 3rd) 1/4" Female O-Ring Boss Port (7/16 - 20 Thread)
• Black Buna-N 90 Durometer O-Ring
• Adjustable Nut/Washer/O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified

• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
