K21190-04-04

1/4" Braided Crimp x 1/4" FOFX 90° - Hydraulic Hose Fitting - Steel

$8.08
Sold as: Each
Ordered as: K21190-04-04
view spec page

Crossover Part Numbers

Parker Ref.: 1J943-4-4 / 1J543-4-4

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1/4"1 - Thread Type: K2 Hose End

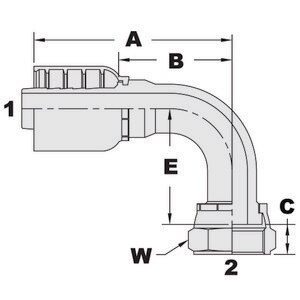

1 - Size: -04 (1/4")2 - Thread Type: Female OFS Swivel 90°2 - Size: -04 (1/4")2 - Thread: 9/16 - 18A - Length: 2.01B - Cut-Off Allowance: 1.18C - Optional Length: 0.32
E - Drop Length: 0.95W - Nut Hex: 11/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
