K22900-06-06

3/8" Braided Crimp x 3/8" FBSPPX - 60° Cone - Hydraulic Hose Fitting - Steel

$7.42
Sold as: Each
Ordered as: K22900-06-06
view spec page

Crossover Part Numbers

Parker Ref.: 1GU43-6-6

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 3/8"1 - Thread Type: K2 Hose End

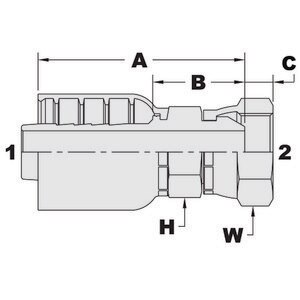

1 - Size: -06 (3/8")2 - Thread Type: Female BSP Swivel - 30° Cone2 - Size: -06 (3/8")2 - Thread: 3/8 - 19A - Length: 2.17B - Cut-Off Allowance: 1.10C - Optional Length: 0.24
H - Body Hex: 3/4W - Nut Hex: 7/8Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
