FS-2406-08-04

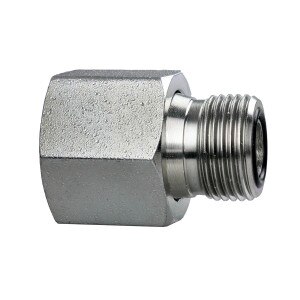

1/2" FOFX x 1/4" OFS - OFS Tube Reducer - Steel
Details
Details
• OFS Tube Reducer
• FOFX x OFS
• 1st) 1/2" Female OFS Swivel (13/16 - 16 Thread)
• 2nd) 1/4" Male O-Ring Face Seal (9/16 - 18 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520123
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
• FOFX x OFS
• 1st) 1/2" Female OFS Swivel (13/16 - 16 Thread)
• 2nd) 1/4" Male O-Ring Face Seal (9/16 - 18 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520123
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2281T0408SEaton-Weatherhead Ref: 4213x8x4
Parker Ref: 8-4 TRLON-SSAE Ref: 520123
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/2" x 1/4"
1 - Thread Type: Female OFS Swivel1 - Size: -08 (1/2")1 - Thread: 13/16 - 162 - Thread Type: Male OFS2 - Size: -04 (1/4")2 - Thread: 9/16 - 18

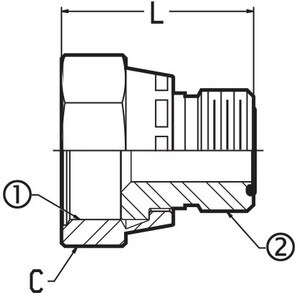

C - Hex: 15/16L - Length: 1.29Working PSI: 9,200Burst PSI: 36,800Working BAR: 634Burst BAR: 2,537
