FS-6400L-12-12

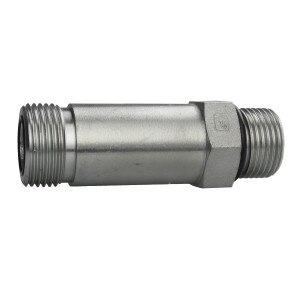

3/4" OFS x 3/4" MB - OFS Straight Thread Connector LONG - Steel
Details
Details
• OFS Straight Thread Connector LONG
• OFS x MB LONG
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520122
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x MB LONG
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male O-Ring Boss (1 1/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520122
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF1854T1212SEaton-Weatherhead Ref: 4316x12
Parker Ref: 12 FF5OLO-SSAE Ref: 520122

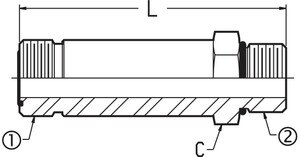

Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 3/4"1 - Thread Type: Male OFS
1 - Size: -12 (3/4")1 - Thread: 1 3/16 - 122 - Thread Type: Male ORB2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 12C - Hex: 1 1/4I - Assembled: 2.52
L - Length: 3.76Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
