FS-6600-06-06-06-4

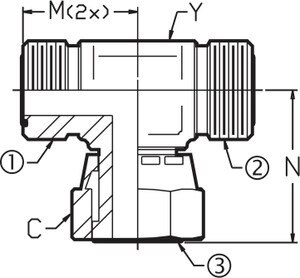

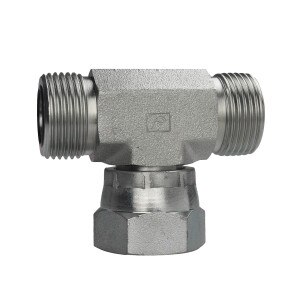

OFS x OFS x FOFX - OFS Sw Nut Branch Tee
Details
Details
• OFS Swivel Nut Branch Tee
• OFS x OFS x FOFX
• 1st) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 2nd) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 3rd) 3/8" Female OFS Swivel (11/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520433
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
